NANLITE PavoSlim 240CL LED RGBWW Panel Light
The NANLITE Pavoslim 240CL is a great addition to any lighting kit being a 4ft x 1ft lightweight RGBWW LED panel light with an array of mounting and power options. Ideal for use as a key light, in small studios, low-ceiling locations or on Film and TV sets
UK stock arrived and available now
NANLITE PavoSlim 240CL LED RGBWW Panel Light
- Excellent 4ft x 1ft RGBWW Panel Light
- Native 60 degree beam angle LEDs giving fantastic illumination output
- Built-In LumenRadio CRMX as well as On-board control, 2.4G, Bluetooth, DMX/RDM, NANLINK APP
- Super fast to deploy
- Attached Softbox Diffuser

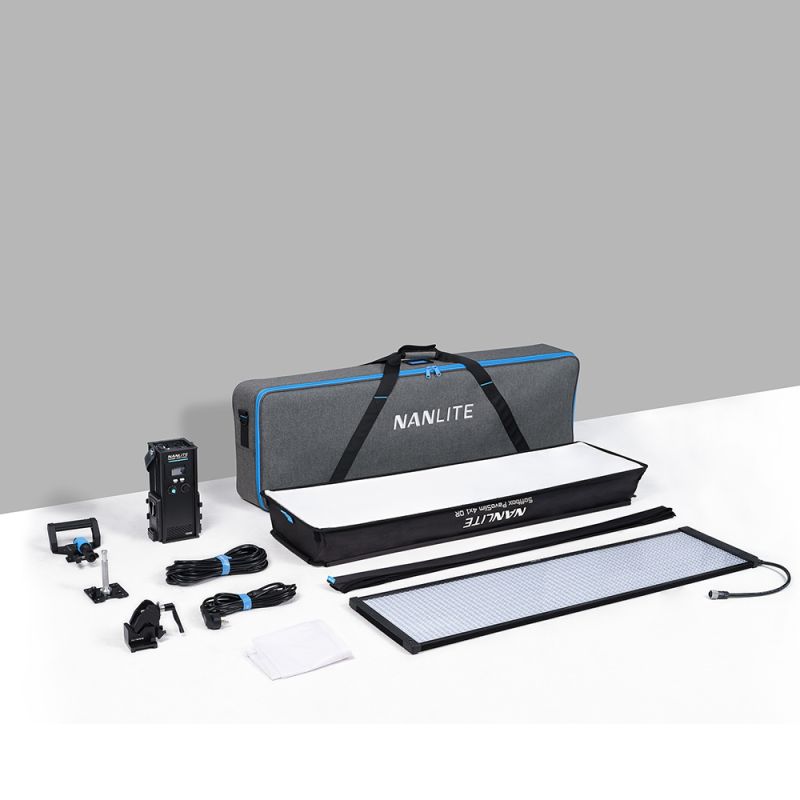

Included in the Box
- PavoSlim 240CL × 1
- Control Unit × 1
- Universal Holder × 1
- Quick Release Clamp × 1
- Baby Pin Holder × 1
- DC Connection Cable 5M × 1
- AC Power Cable 4.5M × 1
- Quick-release Softbox × 1
- Diffuser × 2 (Standard Diffuser × 1+Lite Diffuser × 1)
- Eggcrate × 1
- Carrying Bag × 1
- User Manual × 1
NANLITE PavoSlim 240CL LED RGBWW Panel Light
The 4 x 1 size of the PavoSlim 240CL expands the available size options of the PavoSlim series. The difference in length and width enables the fixture to provide a softer light on the long side and a harder light on the short side, allowing for flexible application based on needs.
The Pavoslim 240CL's elongated shape, combined with a thickness of just under 1 inch (2.35cm), means it can easily be set up in tight spaces on location or in low ceiling height studios.
The fixture is made from super light high-quality aluminum alloy, providing excellent protection and heat dissipation. The rear of the PavoSlim 240CL features a large multi-row heat sink, enhancing structural strength and efficiently moving heat away.
Powered by V-mount batteries of various voltages, the PavoSlim 240CL provides greater convenience for on-the-go shooting. The efficient circuit design not only delivers high output power when using battery power but also enables hot swapping* between different power sources.
The PavoSlim 240CL has a high rated power of 260W, like the PavoSlim 240B/240C, while the fixture body weighing only 3.62 kg / 7.98lb. With the carefully designed optical lens, the light from each emitter is perfectly mixed, and it achieves four times the output compared to similar products, delivering impressive brightness in a compact body.
Specifications
| Model | PavoSlim 240CL | |
|---|---|---|
| Rated Power | 260W | |
| Input Voltage/Current | AC 100-240V 50/60HZ DC 48V/5.6A DC(Battery)14.4-26V |
|
| CCT | 2700K-7500K(G/M ± 150) | |
| CRI | Average 96 | |
| TLCI | Average 97 | |
| TM-30 Rf | Average 94 | |
| TM-30 Rg | Average 100 | |
| SSI (3200K) | 84 | |
| SSI (5600K) | 74 | |
| Dimming | 0-100% | |
| Control | On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX | |
| Special Effects | HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
|
| Product Size | Light Fixture: 1205.5 × 307.3 × 23.5mm / 47.46 × 12.10 × 0.93" Control Unit: 152.6 × 111.5 × 283mm / 6.01 × 4.39 × 11.14" |
|
| Product Weight | Light Fixture: 3.62kg / 7.98lb Control Unit: 2.76kg / 6.08lb |
|
| Certifications | CE, UKCA, RoHS, KCC, BIS, FCC-ID, PSE Circle Mark, PSE Diamond Mark, SAA+C-Tick, ETL+cETL, NCC, KUKAS |
|
Illumination ( lux / fc )
| PavoSlim 240CL |
|---|
|
Light Only
|
|||
|---|---|---|---|
| Distance | 0.5M | 1M | 3M |
| 2700K | 40650 lux / 3776 fc | 17690 lux / 1643 fc | 2888 lux / 268 fc |
| 3200K | 44520 lux / 4136 fc | 19570 lux / 1818 fc | 3153 lux / 293 fc |
| 4300K | 47750 lux / 4436 fc | 20970 lux / 1948 fc | 3385 lux / 314 fc |
| 5600K | 48180 lux / 4476 fc | 21030 lux / 1954 fc | 3404 lux / 316 fc |
| 6500K | 47530 lux / 4416 fc | 20760 lux / 1929 fc | 3368 lux / 313 fc |
| R | 20520 lux / 1906 fc | 8350 lux / 776 fc | 1267 lux / 118 fc |
| G | 37620 lux / 3495 fc | 15570 lux / 1446 fc | 2240 lux / 208 fc |
| B | 6940 lux / 645 fc | 1900 lux / 177 fc | 273 lux / 25 fc |
|
With Softbox and Lite Diffuser
|
|||
|---|---|---|---|
| Distance | 0.5M | 1M | 3M |
| 2700K | 26200 lux / 2434 fc | 9140 lux / 849 fc | 1255 lux / 117 fc |
| 3200K | 28930 lux / 2688 fc | 10070 lux / 936 fc | 1375 lux / 128 fc |
| 4300K | 31350 lux / 2912 fc | 10780 lux / 1001 fc | 1479 lux / 137 fc |
| 5600K | 31470 lux / 2924 fc | 10850 lux / 1008 fc | 1483 lux / 138 fc |
| 6500K | 31040 lux / 2884 fc | 10550 lux / 980 fc | 1471 lux / 137 fc |
| R | 13350 lux / 1240 fc | 4690 lux / 436 fc | 655 lux / 61 fc |
| G | 25430 lux / 2362 fc | 8644 lux / 803 fc | 1171 lux / 109 fc |
| B | 3240 lux / 301 fc | 1100 lux / 102 fc | 145 lux / 13 fc |
|
With Softbox and Standard Diffuser
|
|||
|---|---|---|---|
| Distance | 0.5M | 1M | 3M |
| 2700K | 15710 lux / 1459 fc | 4678 lux / 435 fc | 604 lux / 56 fc |
| 3200K | 17310 lux / 1608 fc | 5149 lux / 478 fc | 664 lux / 62 fc |
| 4300K | 18550 lux / 1723 fc | 5521 lux / 513 fc | 715 lux / 66 fc |
| 5600K | 18650 lux / 1733 fc | 5571 lux / 518 fc | 720 lux / 67 fc |
| 6500K | 18420 lux / 1711 fc | 5502 lux / 511 fc | 713 lux / 66 fc |
| R | 8190 lux / 761 fc | 2391 lux / 222 fc | 330 lux / 31 fc |
| G | 15390 lux / 1430 fc | 4631 lux / 430 fc | 598 lux / 56 fc |
| B | 2060 lux / 191 fc | 620 lux / 58 fc | 79 lux / 7 fc |
| Delivery Time | Usually shipped in 1-2 days |
|---|---|
| Price | £1,459.00 |
| Brand | Nanlite |
| Manufacturer Code | Pavoslim 240CL - |
| Type Of Lamphead | Panel Light |
| Number Of Heads | 1 |
| Lamp Type | LED RGBWW |
| Strapline | The NANLITE Pavoslim 240CL is a great addition to any lighting kit being a 4ft x 1ft lightweight RGBWW LED panel light with an array of mounting and power options. Ideal for use as a key light, in small studios, low-ceiling locations or on Film and TV sets UK stock arrived and available now |
