City Theatrical Multiverse Studio Kit 2.4 GHz - 5939

City Theatrical’s Multiverse® Studio Kit brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit.

Demo available - please contact us to organise

The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set.

£7,232.32 £6,026.93

Usually shipped in 2-3 days

SKU

517-305

City Theatrical Multiverse Studio Kit 2.4 GHz - 5939

Broadcast Radio: Transmit and receive on either the 2.4GHz band
Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
Long Life Rechargeable Battery: 20 hour battery life with default settings
Rugged and Splashproof: An IP61 rated plastic case, making it splashproof and rainproof
User Selectable SHoW IDs: City Theatrical has produces wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
Adjustable Output Power: to improve performance, reduce detrimental effects on other radio systems in the venue and reduce reflections

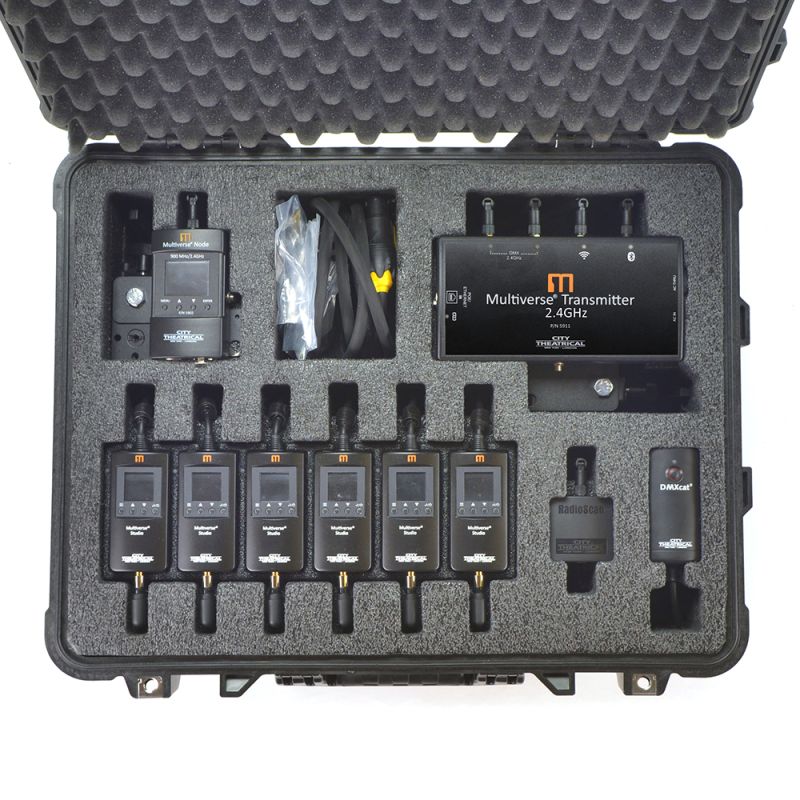

Included in the Box

Six battery powered Multiverse Studio Receivers
One Multiverse Transmitter with hanging bracket and clamp (for multi universe broadcasts)
One Multiverse Node with hanging bracket and clamp (for single universe broadcasts)
One DMXcat Multi-Function Test Tool (to turn on and troubleshoot any lighting fixture on set)
One RadioScan Spectrum Analyzer (for broadcast planning)
Plus, various accessories to keep your equipment organized, mounted, and charged.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

City Theatrical Multiverse Studio Kit 2.4 GHz - 5939

City Theatrical’s Multiverse® Studio Kit brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit.

The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set.

Features:

Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
Choice of Broadcast Radio: Transmit and receive on either the 2.4GHz band or the 900MHz band. (P/N 5905 transmits and receives on the 2.4GHz band only.)
Long Life Rechargeable Battery: 20 hour battery life with default settings
Rugged and Splashproof: An IP61 rated plastic case, making it splashproof and rainproof (but not for permanent outdoor use).
User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
Ultra Low Latency: Total average system latency of 4ms.
mDMX (Multiverse SHoW IDs only)
mRDM (Multiverse SHoW IDs only)
SHoW Key Security (Multiverse SHoW IDs only)
Forward Error Correction (Multiverse SHoW IDs only)
Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
Compatible with all Multiverse and SHoW DMX Neo products
User can select a single universe to receive
A very simple user interface to set SHoW ID, universe, and other features
RDM proxy and responder functions
USB-Power Adaptor and USB-A to USB-C cable included
Selectable display timeout and brightness level
Selectable Auto Off Timeout
Battery Time Remaining displayed in both hours/minutes and percent
