Creamsource Micro Colour Gaffer Kit
The Creamsource Micro Colour Gaffer Kit features the punchy IP65 weatherproof Micro Colour LED Light Fixture with a complete set of accessories for a wide range of uses
Creamsource Micro Colour Gaffer Kit
- 2200K - 15000K White Light
- Green / Magenta adjustment for producing vivid colours
- Weatherproof to IP65
- 12340 lux at 1M light output
- 10-32V DC for V-Mount Power
- Over 1 hour runtime on a 95Wh V-Mount Battery

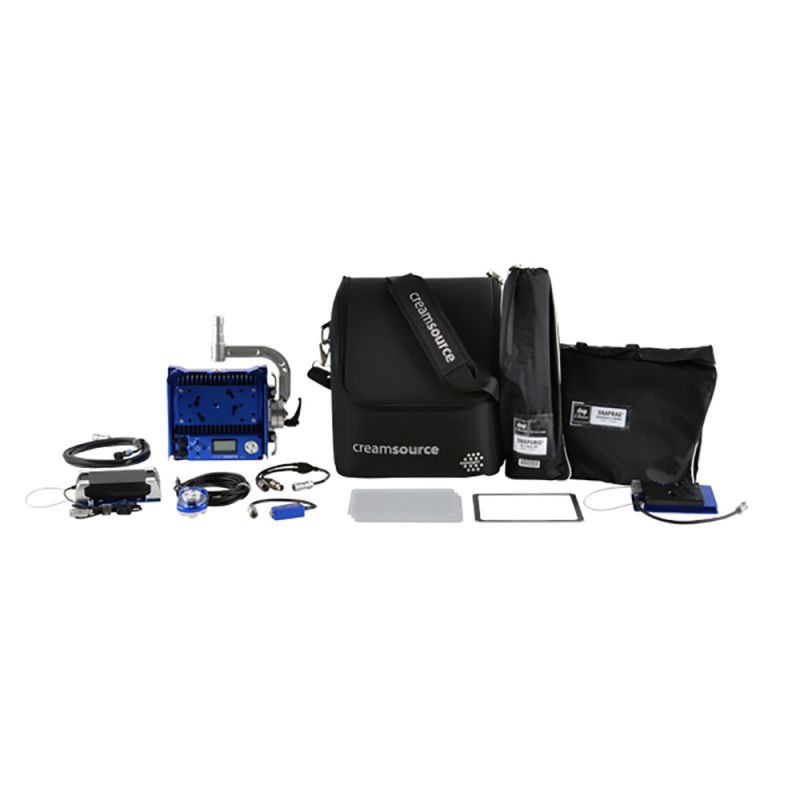

Included in the Box
- Micro Colour Fixture
- Creamsource Micro Lens 60 Degree
- Creamsource Micro Lens 20 Degree
- Creamsource Micro Lens 100 Degree
- Creamsource Micro Power Supply Mount
- Creamsource Micro Yoke
- Creamsource Micro Power Supply Lead 3M
- Creamsource Micro Softbag
- DoPChoice Micro Snapbag for CSU series fixtures
- DoPChoice Micro Snap Grid 40 degree (to fit SnapBag
- Creamsource Micro Battery Mount V Lock
- Creamsource Creamtwist Wired Remote
- Creamsource Micro Gel-Frame (Empty)
- Creamsource Micro DMX Adapter Y Cable
- Creamsource Dome Diffuser
Creamsource Micro Colour Gaffer Kit
The Creamsource Micro Colour features calibrated red, green, blue and white LEDs (RGBW) – so as well as producing beautiful white light in any CCT from 2,200K to 15,000K, it also has green/magenta adjustment and can produce vivid, saturated colours.
The Gaffer Kit includes a range of Softbox, Grid, Diffuser and Wired Remote to give you the accessories required for a complete range of uses.
The Micro Colour has a 20 degree beam angle for maximum punch, fan-free cooling for silent operation, and is water resistant so it can be used in all weather (IP65 rated). It is lightweight yet rugged, quick to rig and its compact form factor means it can squeeze into small spaces on set.
The Micro as been said to compete with 200W HMI fixtures. With a native 20° beam angle the Micro Colour has a long distance throw but can be softened and diffused for beauty shots too.
With 80W of power draw the Micro colour reads 12,340lux at 3.3ft. Thats a lot of bang for a fixture that can be running for over 1hour on a 95Wh V-mount battery.
Specifications
| Colour temperature | 2200K-15,000K |
| Power | 80W |
| Mounting | 3/8” Threaded Insert. Kino Flo Twist On Style Mount Plate |
| Yoke | Removable (Quick Release System). |
| User interface | High Precision Digital Rotary Encoder, 4 Button Keypad, Graphic LCD Display |
| Control | On-Board Interface, DMX-512 with Optional Adapter Cable, Optional Wired Remote Control |
| Dimming | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability | Over 1000fps Flicker Free in High Speed Mode |
| Head Weight | 3.4kg / 7.5lb (Excluding Yoke) 4.2kg / 9.3lb (Including Yoke) |
| Input (fixture) | 10-32V DC, Max 8A (80W) |
| Input (power supply) | 100-240V AC, 50-60Hz, Max 1.3A |
| Dimensions | 223 x 207 x 105mm / 8.7” x 8.1” x 4.1” (Excluding Yoke)300 x 331 x 105mm / 11.8” x 13.0” x 4.1” (Including Yoke) |
| Protection Class | IP65 |
| Beam Angle naked |
20° |
| CRI / TLCI: | Typical 95 |
| Maximum Ambient Temperature | 40°C |
| Delivery Time | Ordered on request |
|---|---|
| Price | £3,262.50 |
| Manufacturer Code | CS-KCSUCGAF-V |
| Strapline | The Creamsource Micro Colour Gaffer Kit features the punchy IP65 weatherproof Micro Colour LED Light Fixture with a complete set of accessories for a wide range of uses |
