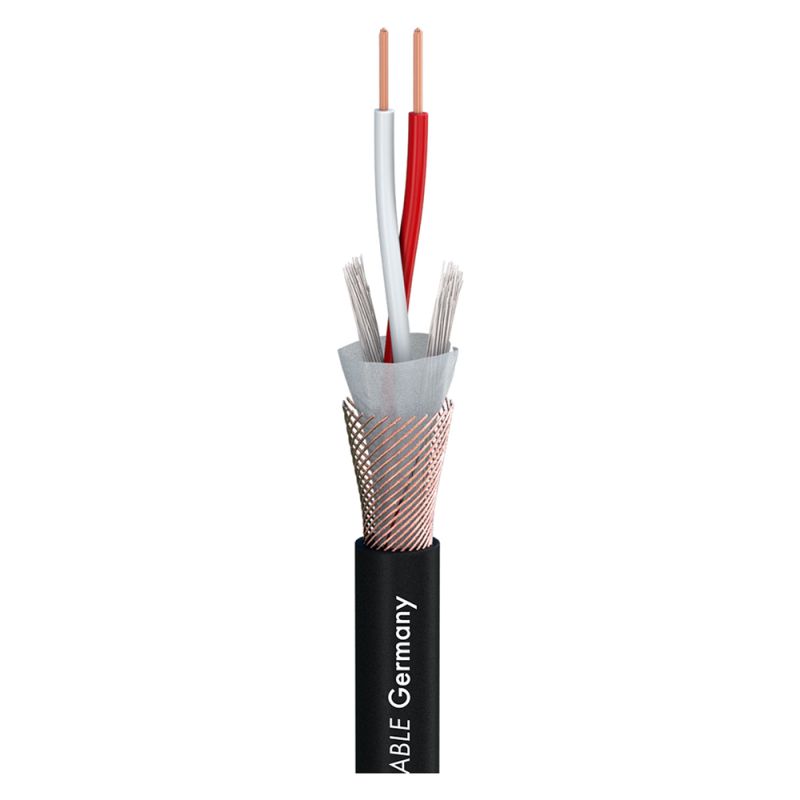

Sommer Cable 520-0051 Binary 234 MKII AES /EBU & DMX Cable - Black 100M Reel

Sommer Cable's BINARY 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It offers great shielding and data integrity.

£154.80 £129.00
In Stock
Only 1 left
SKU
300-0711

Sommer Cable 520-0051 Binary 234 MKII AES /EBU & DMX Cable 100M Reel

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
  • Extremely robust with an especially strong jacket
  • Only a little more expensive than a standard microphone cable

Applications

  • Networking of scanners, lighting units, digital mixing boards, etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT-recorders, etc.

Included in the Box

  • 1 x 100M Reel Sommer Cable Binary 234 MKII



Sommer Cable 520-0051 Binary 234 MKII AES /EBU & DMX Cable 100M Reel

The Binary 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It has 100 % shielding made of an aluminum-vaporized fleece and copper spiral shielding and provides very good protection against electrical and magnetic interference.

This cable ensures faultless data transfer over distances of up to 100 meters





More Information
Delivery Time In Stock
Price £129.00
Brand Sommer Cable
Manufacturer Code 520-0051
Jacket Diameter 6.4 mm PVC
Conductors 2 x 0.34 mm
Copper Strand No 19 x 0.15 mm per conductor
Insulation Foam/skin-PE 1,50 mm
Shielding Factor 100 %25252525
Working Temperature min -25 degree C - max 70 degree C
Fire Load 0.17 kWh
Conductor Resistance 53 Ohm per km
Shield Resistance 28 Ohm
Insulation Resistance %2525253E 1 GOhm per km
Capacitance Cond / Cond %2525253C63 pF
Capacitance Cond / Shield %2525253C 115 pF per Metre
Impedance 110 Ohm
Strapline Sommer Cable's BINARY 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It offers great shielding and data integrity.
