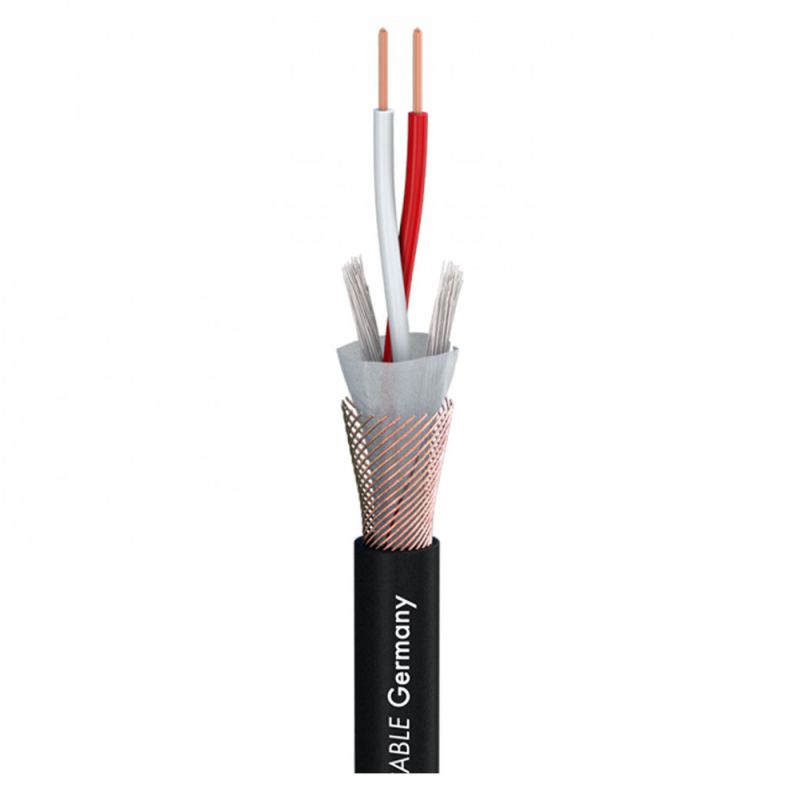

Sommer Cable Binary 234 MKII AES /EBU & DMX Cable - PUR 521-0051

Sommer Cable's BINARY 234 with a PUR outer jacket is ideal for outdoor and underwater installation. It is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX

£2.02 £1.68
In Stock
SKU
300-073

Sommer Cable 521-0051 Binary 234 MKII AES /EBU & DMX Cable - PUR

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
  • Extremely robust with an especially strong jacket
  • PUR jacket for outdoor and underwater use

Applications

  • Networking of scanners, lighting units, digital mixing boards, etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT-recorders, etc.

Included in the Box

  • Sommer Cable Binary 234 MKII PUR - Sold by the meter



Sommer Cable 521-0051 Binary 234 MKII AES /EBU & DMX Cable - PUR

The Binary 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It has 100 % shielding made of an aluminum-vaporized fleece and copper spiral shielding and provides very good protection against electrical and magnetic interference.

This cable ensures faultless data transfer over distances of up to 100 meters





More Information
Delivery Time In Stock
Price £1.68
Brand Sommer Cable
Manufacturer Code 521-0051
Jacket Diameter 6.4 mm PUR
Conductors 2 x 0.34 mm
Copper Strand No 19 x 0.15 mm per conductor
Insulation Foam/skin-PE 1,50 mm
Shielding Factor 100 %25252525
Working Temperature min -25 degree C - max 70 degree C
Fire Load 0.17 kWh
Conductor Resistance 53 Ohm per km
Shield Resistance 28 Ohm
Insulation Resistance %2525253E 1 GOhm per km
Capacitance Cond / Cond %2525253C63 pF
Capacitance Cond / Shield %2525253C 115 pF per Metre
Impedance 110 Ohm
Strapline Sommer Cable's BINARY 234 with a PUR outer jacket is ideal for outdoor and underwater installation. It is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX
