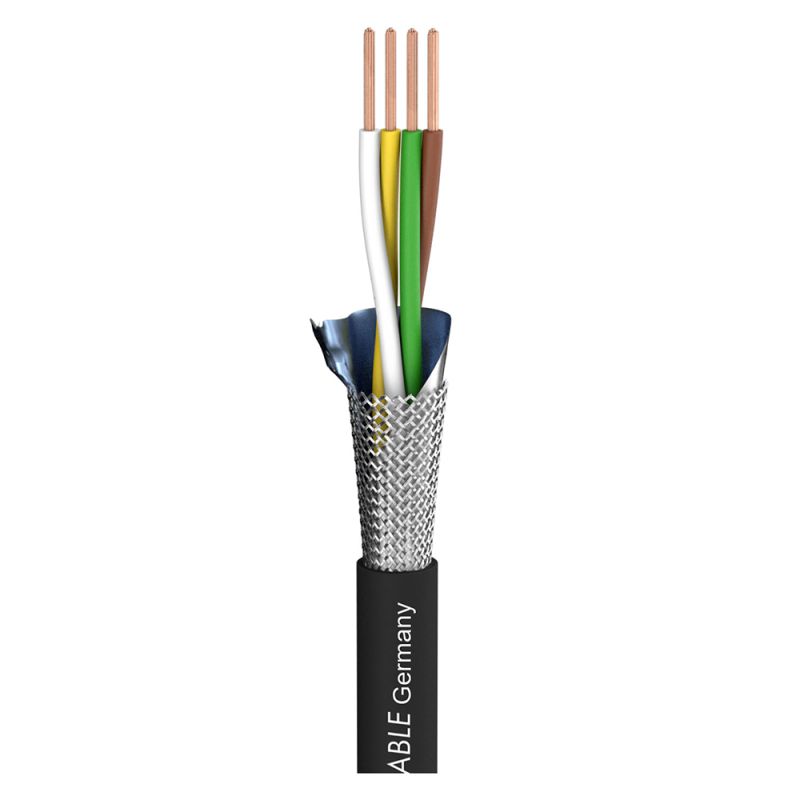

Sommer Cable Binary 434 DMX Cable 4x0,34 mm² + Ground 540-0051

The Sommer Cable Binary 434 is a 110 Ohm cable with 4 x conductors and shield. Binary 434 can be used for AES/EBU digital Audio, Analogue Audio, Standard DMX, DMX with talkback function and for Power over DMX. This is a robust cable that is suitable for Stage and Live use, Installation, Studio or Broadcast use as well as for Mobile use both outdoor or indoors.

£1.98 £1.65
In Stock
Only 100 left
SKU
300-076

Sommer Cable 540-0051 Binary 434 DMX Cable 4x0,34 mm² + Ground

  • 110 Ohm Digital transmission over long distances for DMX or AES/EBU
  • Excellent protection against electric interference (Cu mesh screen + AL/PT foil)
  • Extremely robust due to the special tough jacket
  • Networking of scanners and lighting systems with check-back function
  • Perfect for PoDMX (Power over DMX)
  • Connection of digital control units and devices of all kinds

Included in the Box

  • 1 x Sommer Cable 540-0051 Binary 434 DMX Cable

Sold by the meter

Sommer Cable 540-0051 Binary 434 DMX Cable 4x0,34 mm² + Ground

The Sommer Cable Binary 434 is a robust audio or DMX cable suitable for AES/EBU audio and standard DMX, DMX with feedback function or for Power over DMX.

The robust outer jacket is suitable for both indoor and outdoor use and the Binary 434 is incredibly well shielded against RF interference.

More Information
Delivery Time In Stock
Price £1.65
Brand Sommer Cable
Manufacturer Code 540-0051
Jacket Diameter 7 mm
Conductors 4 x 0,34 mm² plus shield
Copper Strand No 7 x 0.25mm
Shielding Factor 100%
Conductor Resistance 53 Ohm (1km)
Shield Resistance 15 Ohm (1km)
Capacitance Cond / Cond 58 pF
Capacitance Cond / Shield 100 pF
Impedance 110 Ohm
Strapline The Sommer Cable Binary 434 is a 110 Ohm cable with 4 x conductors and shield. Binary 434 can be used for AES/EBU digital Audio, Analogue Audio, Standard DMX, DMX with talkback function and for Power over DMX. This is a robust cable that is suitable for Stage and Live use, Installation, Studio or Broadcast use as well as for Mobile use both outdoor or indoors.
