Sommer Cable 200-0551 SC-Peacock MKII Patch & Microphone AES/EBU Cable - Black
Sommer Cable Peacock Microphone and AES/EBU Cable perfect for DMX, stereo mic. cables and a multitude of analogue or digital cabling uses - Stocked version is without print down the cable
£2.39
£1.99
In Stock
Only 86 left
SKU
300-040

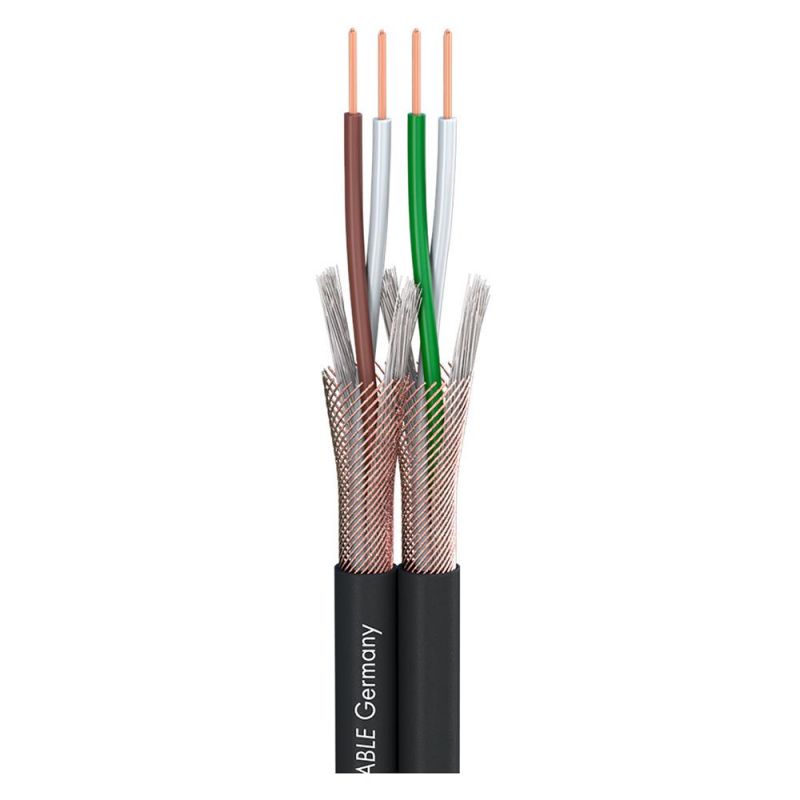

Sommer Cable 200-0551 SC-Peacock MKII Patch & Microphone AES/EBU Cable
- Highly flexible due to the use of a cold-resistant and soft PVC jacket
- Multiple applications, as the individual wires can be separated
- Perfect for Digital 110 Ohm and Analogue Cabling
Application:
- Wiring of stereo microphones
- Assembly of insert cable
- Ideal for both Digital and Analogue Cabling
Included in the Box:
- Sommer Cable Peacock MKII (No Print) sold by the meter
Sommer Cable 200-0551 SC-Peacock MKII Patch & Microphone AES/EBU Cable
You can do a lot with this cable. It's primary use will be as a stereo microphone cable and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be wired to single connectors or can be separated to multiple connectors. A single channel line will fit into every jack, XLR, and RCA connector. Also compatible for DMX 110 Ohm use.
| Delivery Time | In Stock |
|---|---|
| Price | £1.99 |
| Brand | Sommer Cable |
| Manufacturer Code | 200-0551NE (No Print) |
| Jacket Diameter | 4.5x9.2mm |
| Conductors | 2x2x0.22mm |
| Copper Strand No | 28 x 0.10 mm per conductor |
| Insulation | Foam/Skin PE |
| Shielding Factor | 95% |
| Conductor Resistance | 90 Ohm per km |
| Shield Resistance | 36 Ohm per km |
| Strapline | Sommer Cable Peacock Microphone and AES/EBU Cable perfect for DMX, stereo mic. cables and a multitude of analogue or digital cabling uses - Stocked version is without print down the cable |
