Sommer Cable 500-0406 SC-Isopod SO-F22D Patch Cable - Grey 110 Ohm
Sommer Cable - SC-ISOPOD SO-F22D 110 Ohm Patch Cable is perfectly suited for wiring inside racks, mini XLR cabling and for audio and HiFi components
Sommer Cable 500-0406 SC-Isopod SO-F22D Patch Cable - Grey 110 Ohm
- Fast and easy to work with
- Durability due to the robust plastic jacket we developed specially
- Easy to install due to the “memory“ effect
- 100 % Shielded
- 110 Ohm for Analogue or Digital Audio
Applications
- Mini XLR Connectors
- Inside wiring of racks, audio and HiFi-components
Included in the Box
- Sommer Cable Isopod 110 Ohm - Sold by the Meter
Sommer Cable 500-0406 SC-Isopod SO-F22D Patch Cable - Grey 110 Ohm

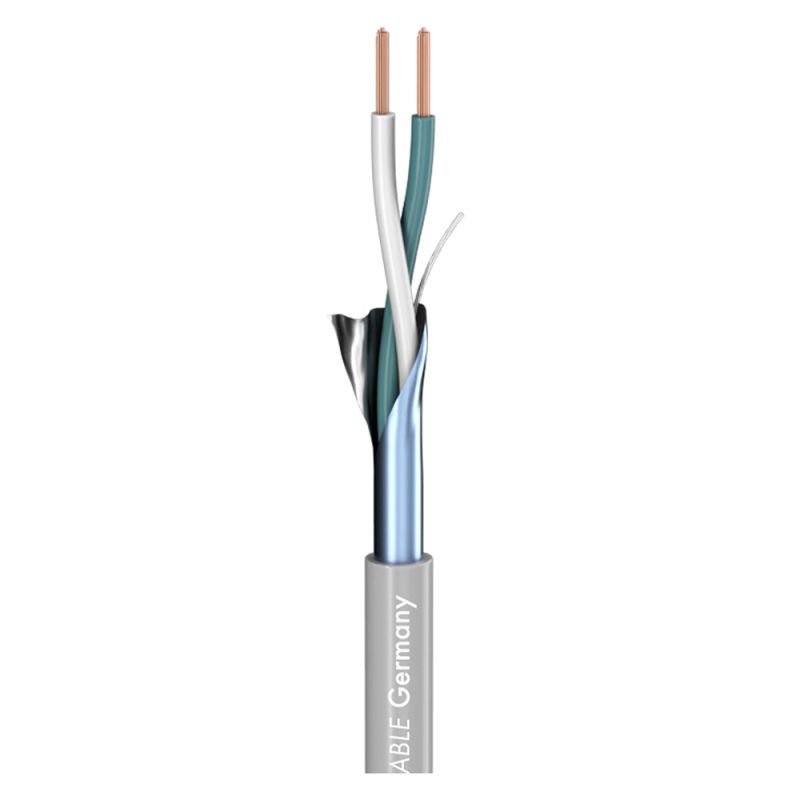

The SC-Isopod SO-F is a 2-wire foil-shielded cable with a compact outer diameter of either 3.3 mm. The cable is ideal for use with location recorders using mini XLR connectors and is mostly used for inside wiring of audio and HiFi-components. It has a “memory“ effect and can be installed “around corners“ without any problems.
The copper strands of the respective wire pairs are pre-twisted and can be stripped very easily. For easy connection the cable has an additional pre-twisted and tin-plated drain wire. It is shielded with AL/PT-foil, which automatically adheres to the jacket during stripping.
| Delivery Time | In Stock |
|---|---|
| Price | £0.70 |
| Brand | Sommer Cable |
| Manufacturer Code | 500-0406 SC-Isopod SO-F22D |
| Jacket Diameter | 3.3 mm PVC |
| Conductors | 2 x 0.22 mm |
| Copper Strand No | 7 x 0.20 mm per conductor |
| Insulation | PE 1.12 mm |
| Shielding Factor | 100 %25 |
| Working Temperature | min -25 degree C - max 70 degree C |
| Fire Load | 0.05 kWh |
| Conductor Resistance | 140 Ohm per km |
| Shield Resistance | 75 Ohm per km |
| Insulation Resistance | 200 MOhm per km |
| Capacitance Cond / Cond | 74 pF per Metre |
| Capacitance Cond / Shield | 143 pF per Metre |
| Impedance | 110 Ohm |
| Strapline | Sommer Cable - SC-ISOPOD SO-F22D 110 Ohm Patch Cable is perfectly suited for wiring inside racks, mini XLR cabling and for audio and HiFi components |
